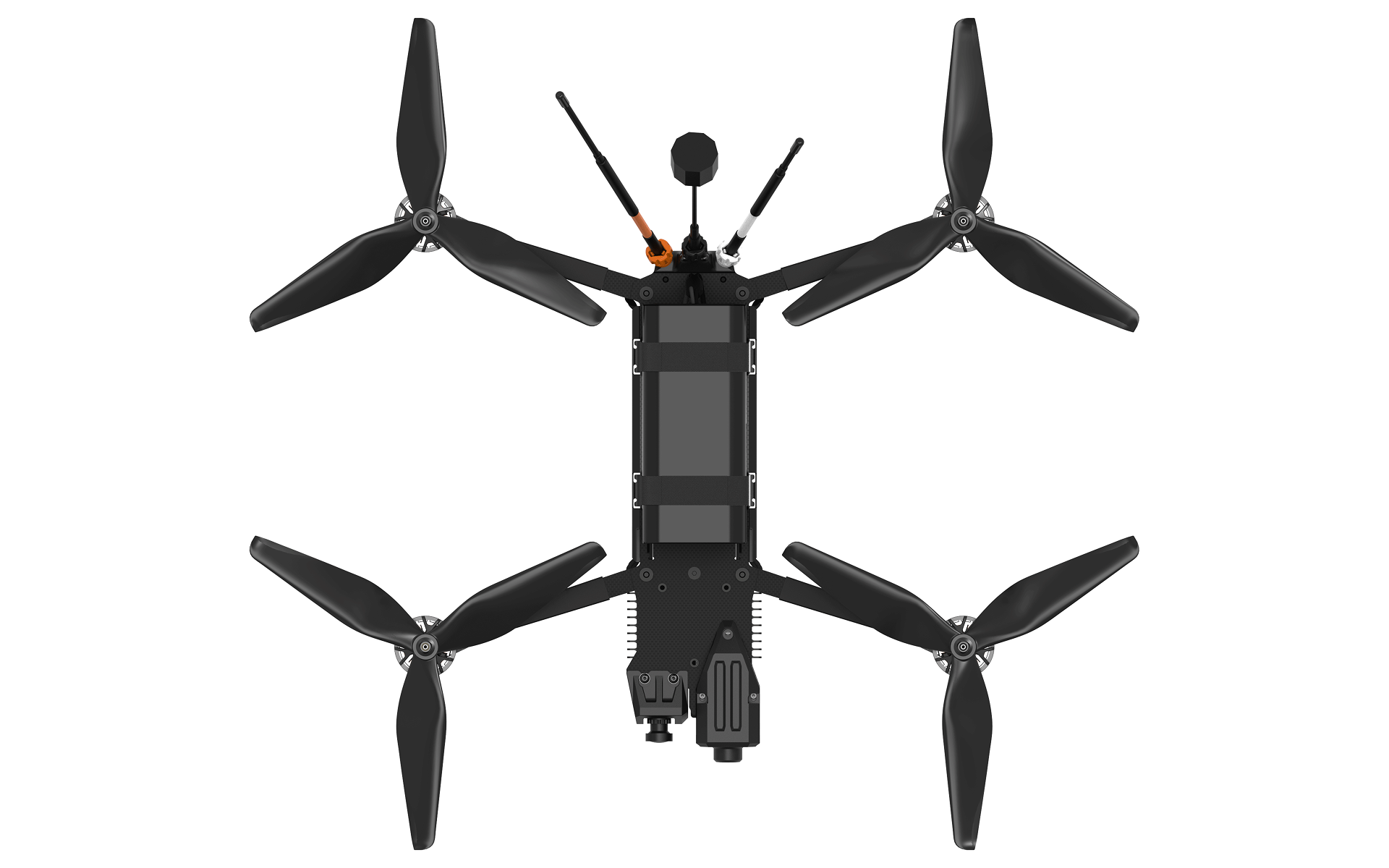

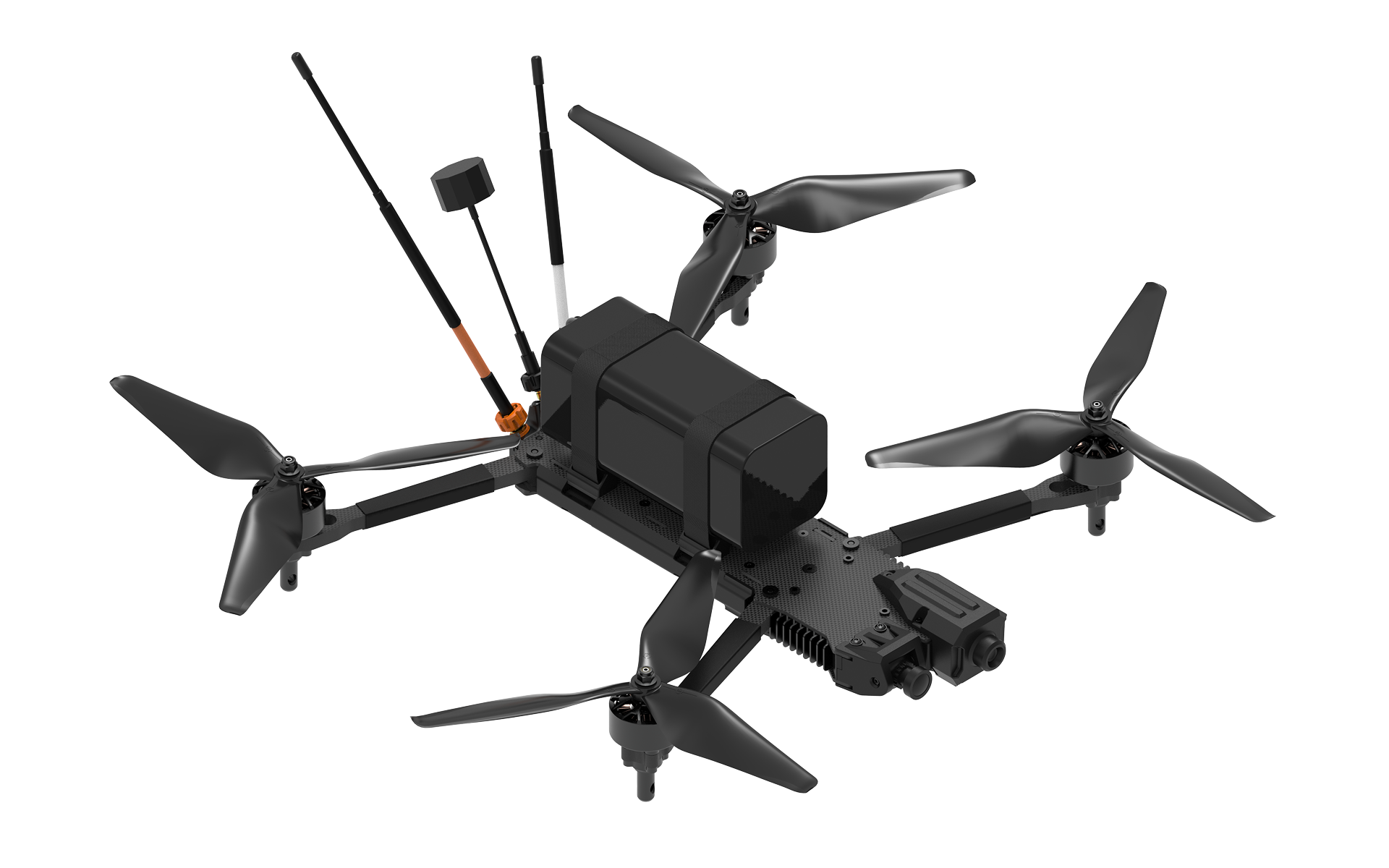

archer ai
Built on the proven Archer FPV platform, Archer AI ships with onboard compute for autonomous combat operations, including terminal guidance that enables the drone to fly itself to a designated target, even when comms are lost.
Archer AI provides operators maximum flexibility: manual FPV precision when desired, and autonomous strike capabilities that extend their lethality beyond RF line of sight.
Firmware can be updated by end users to ensure warfighters have access to our latest software features.
Key features
Autonomy compute module onboard
Payloads up to 7 lb
APEX payload adapter enabling warheads, repeaters, fiber, and direction finders
Low latency analog feed alongside digital cameras
NDAA compliant and Blue UAS certified
terminal guidance
Autonomous glide path towards an operator-selected pixel lock target without additional flight inputs, even if C2 link is lost on approach.
position hold
Maintain position and altitude without additional operator flight inputs using only the downward camera and onboard compute, including in GPS-denied environments.
01
archer
length
20.5 in
width
14.8 in
weight
6.0 lb (2.72 kg)
with battery
MAX PAYLOAD
7.0 lb (3.18 kg)
02
data link
video
Low latency analog FPV + digital cameras for autonomy
control
Dual band, EW hardened
antennas
Frequency tuned, user swappable
03

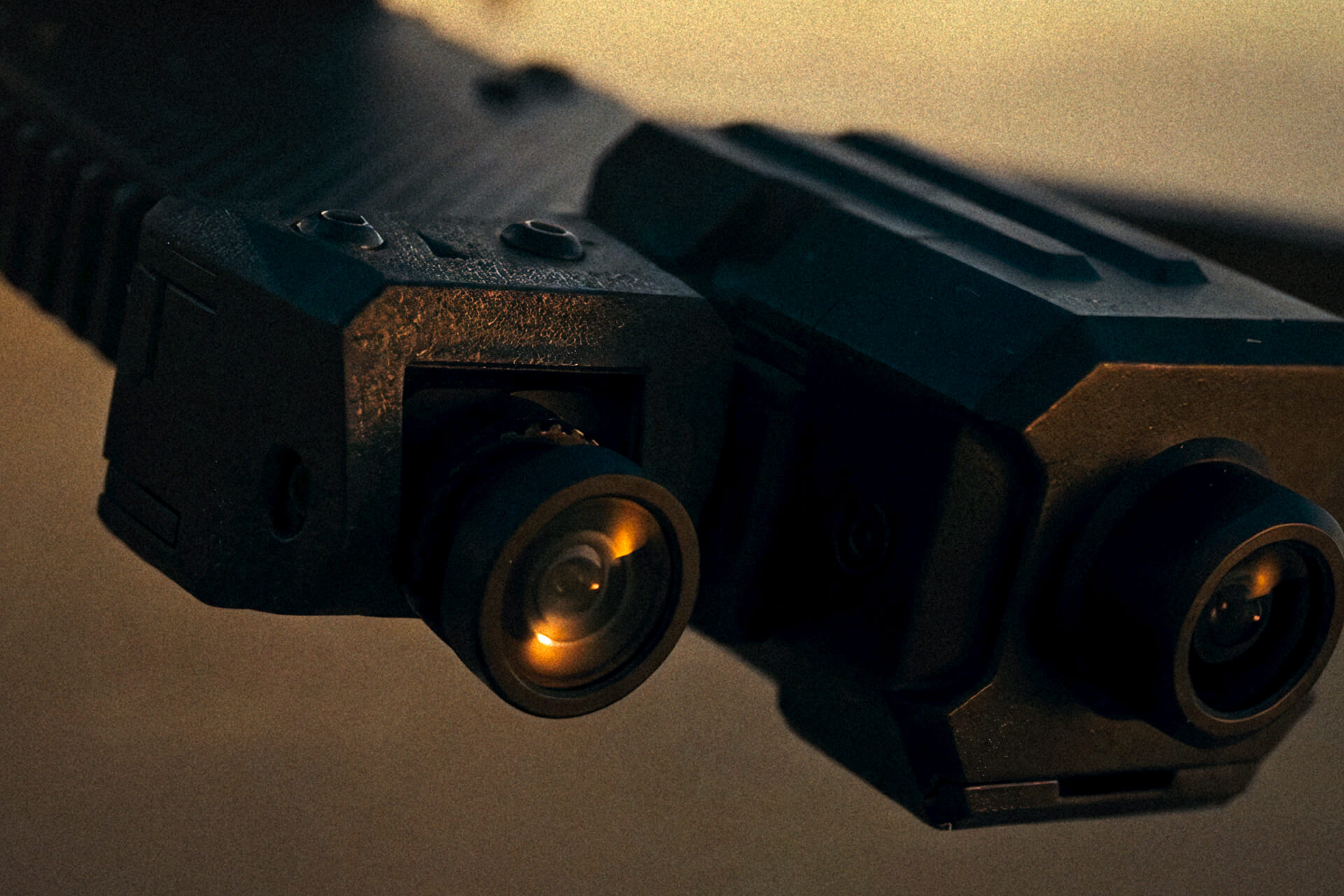

sensors

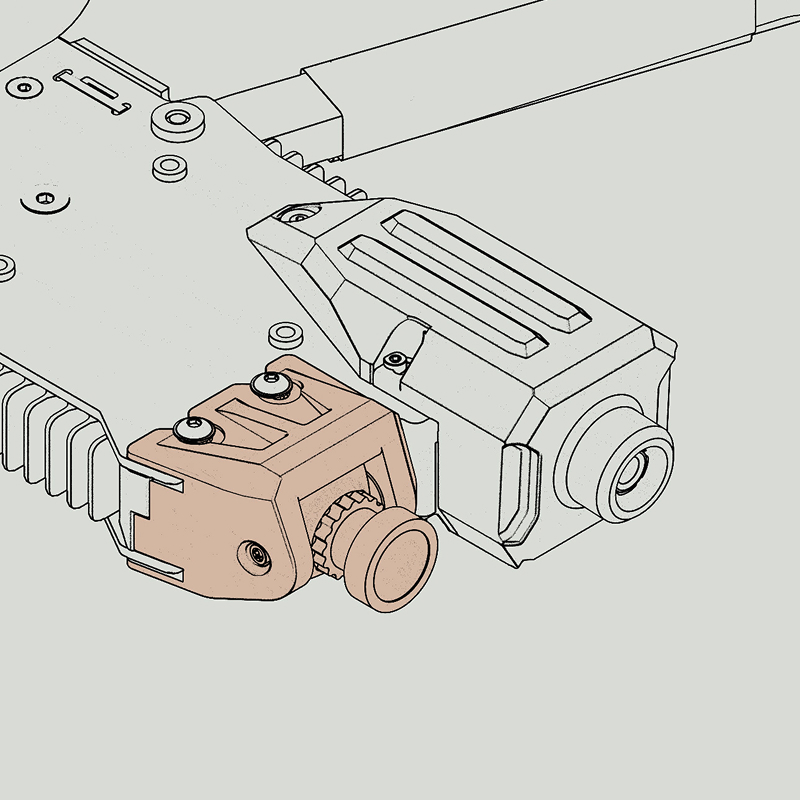

fpv camera (analog)
1200 TVL,
150° FOV

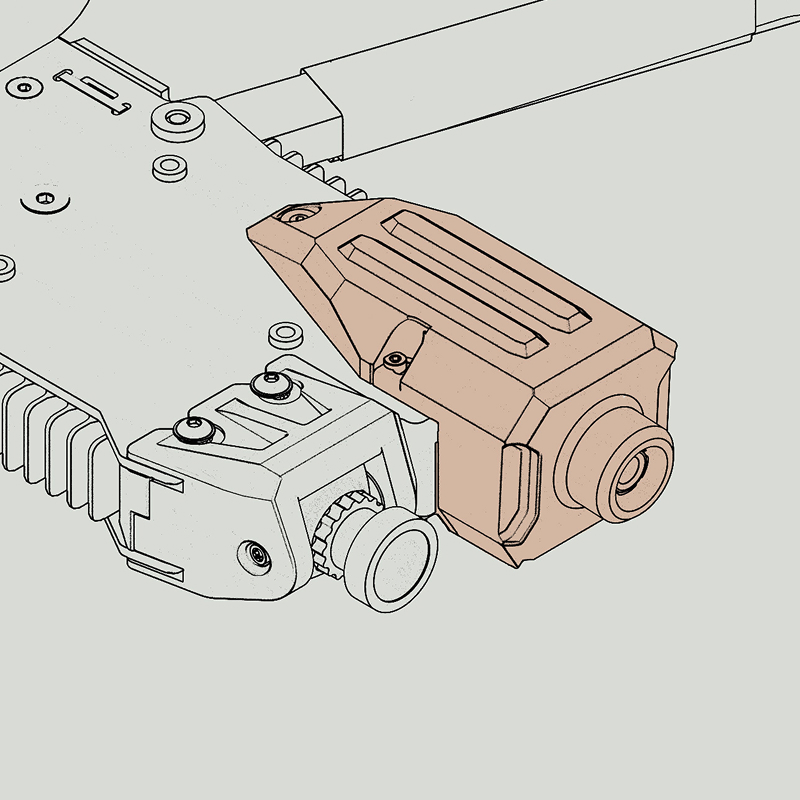

autonomy cameras (digital)
Forward-facing: 90° FOV
Downward-facing: 160° FOV
top speed
75 mph / 121 kph
flight range
35 km (no payload)
13 km (7.0 lb payload)
flight time
45 min (no payload)
11 min (7.0 lb payload)
launch time
<3 min
