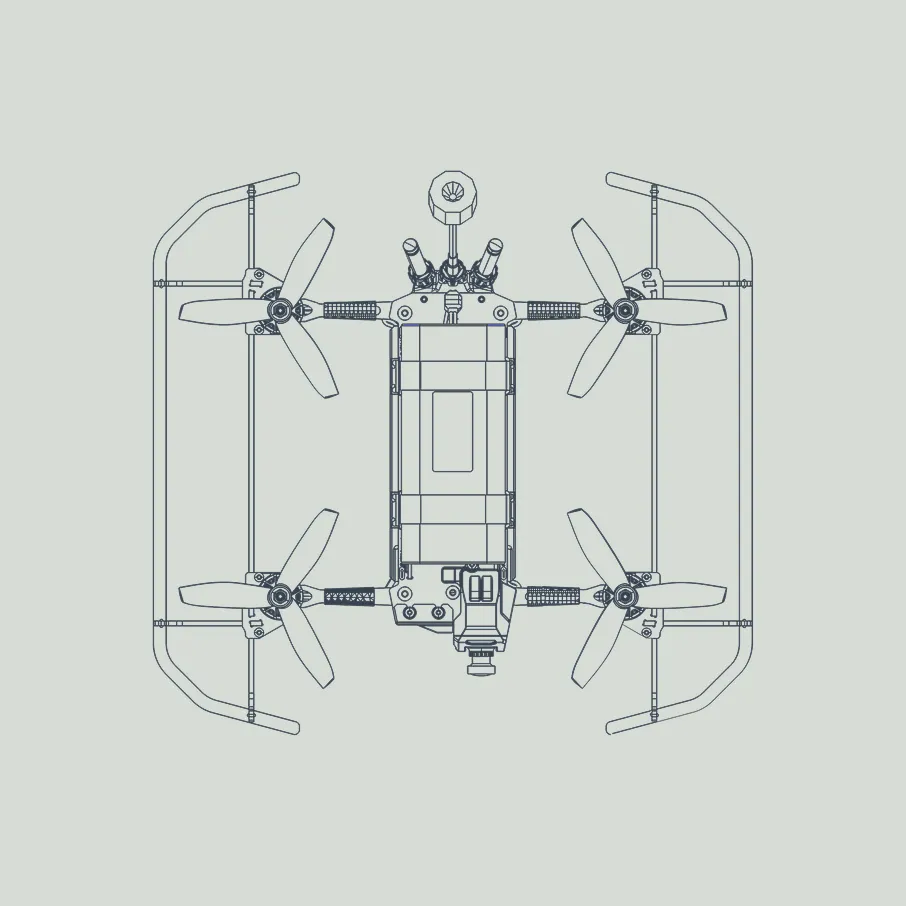

archer 5”
One platform. Two missions.

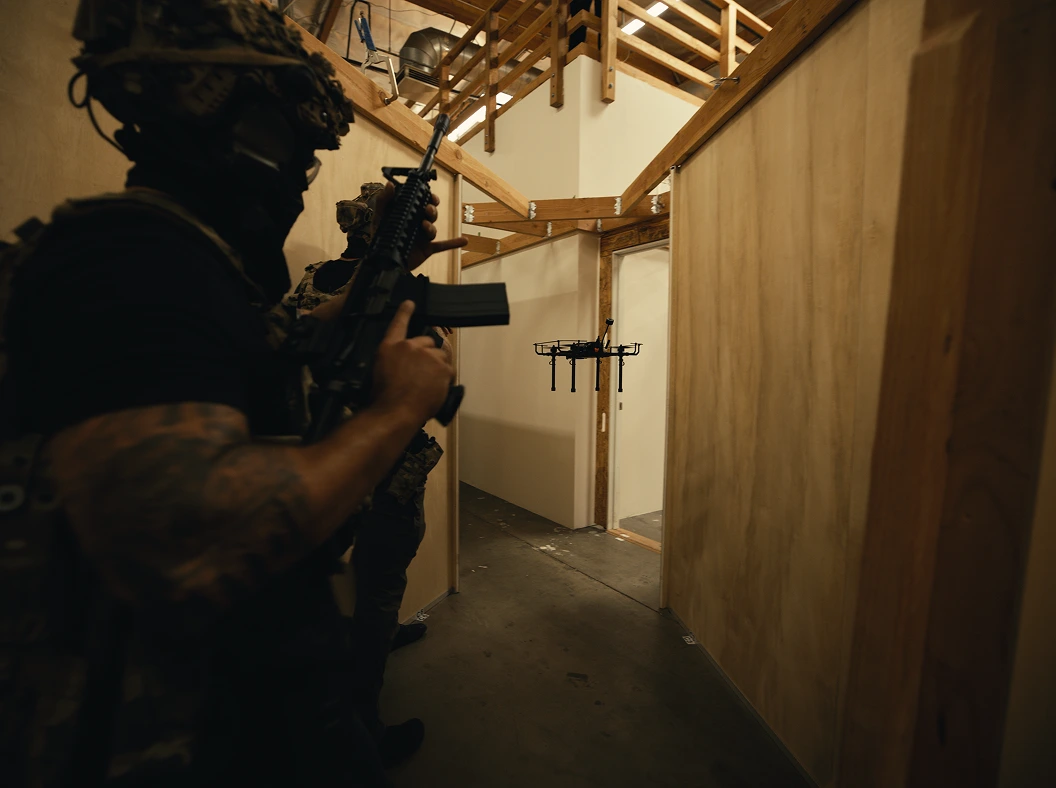

A compact, highly maneuverable airframe built for confined and indoor environments, with the versatility to serve as a training platform.
Key features

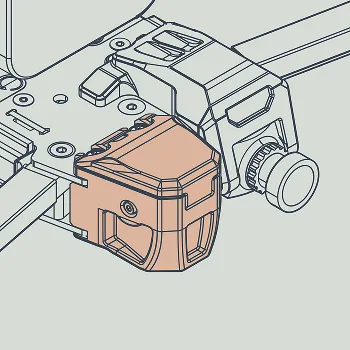

Swappable front sensor

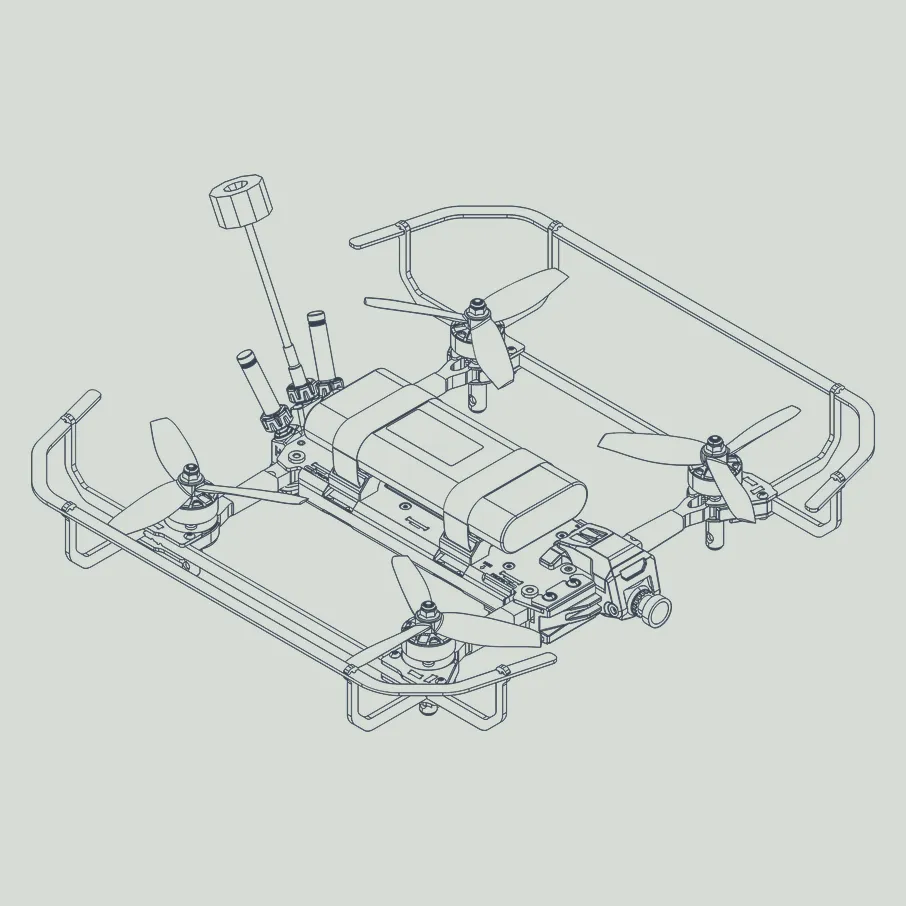

Optional propeller guards
Integrated landing leg mounts
Ruggedized camera mount
High performance 6S 5 Ah battery
Frequency tuned, user swappable antennas
01
archer
length
13.9 IN
width
14.8 IN
weight (airframe)
2.65 LB (1,200 G)
with battery
2.80 LB (1,270 G)
with guards
02
data link
video
High power adjustable analog link
control
Dual band, EW hardened
antennas
Tactical C2
03
sensors

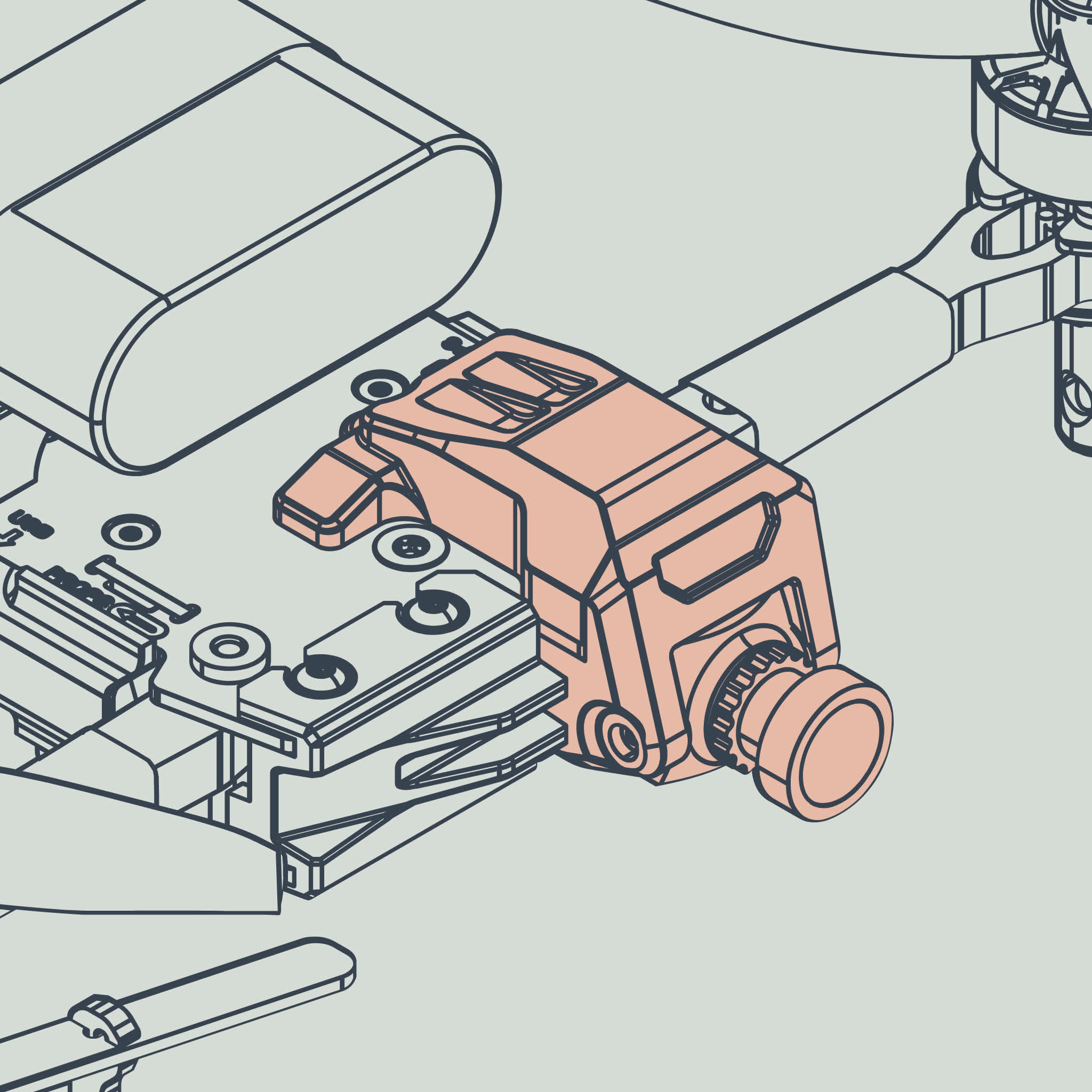

fpv camera
2,300 TVL,
150° FOV

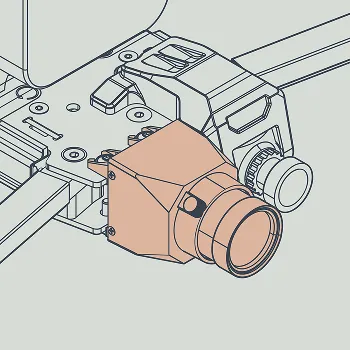

thermal camera
640 x 480,
78° FOV

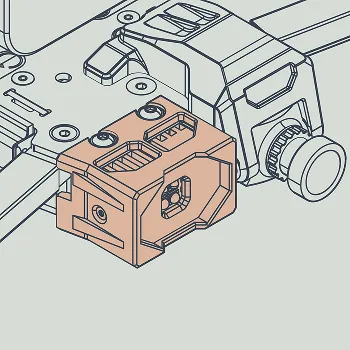

eo/ir illuminator
1,000 Lumens
1,000 MW/SR
down camera
1,200 TVL,
150° FOV
top speed
74 mph / 120 KPH
flight range
13 km
flight time
20 min
launch time
<3 min
