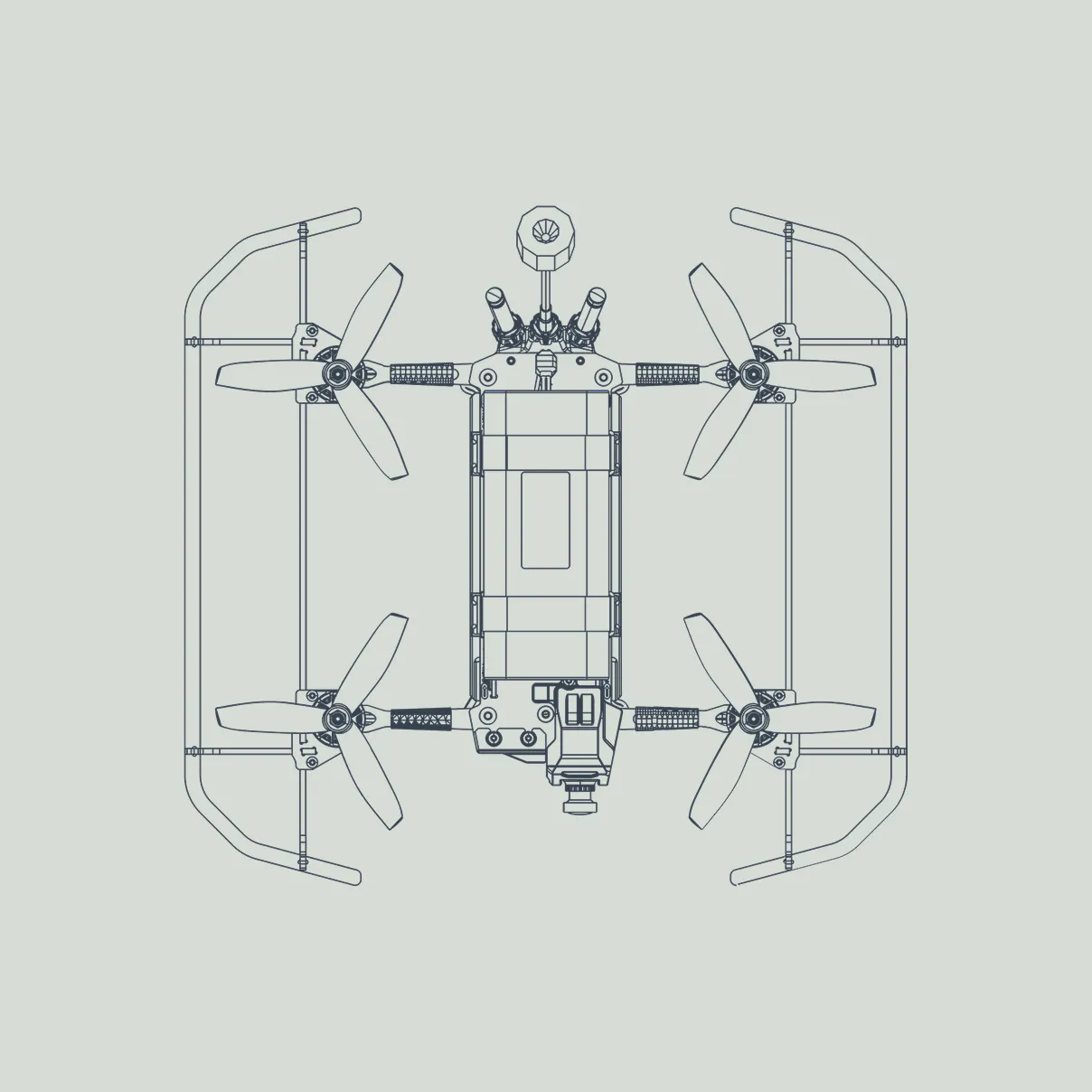

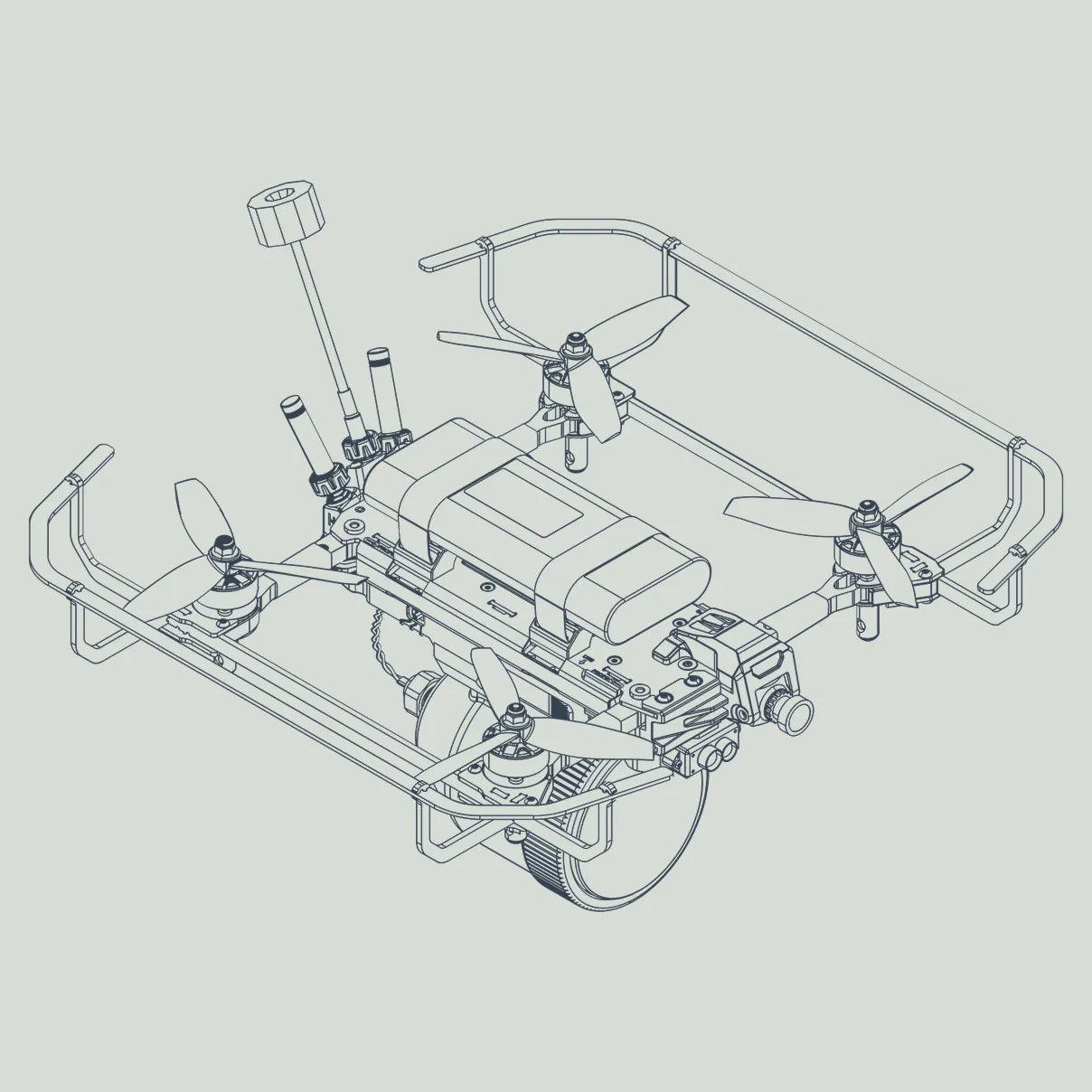

archer 5” Strike
Key features
APEX payload adapter enabling warheads, repeaters, fiber, and direction finders
Swappable front sensor
Optional propeller guards
Integrated landing leg mounts
Ruggedized camera mount
High performance 6S 5 Ah battery
Frequency tuned, user swappable antennas
01
archer
length
13.9 IN
width
14.8 IN
weight (airframe)
2.65 LB (1,200 G)
with battery
2.80 LB (1,270 G)
with guards
Max Payload
1.50 LB (680 G)
02
data link
video
High power adjustable analog link
control
Dual band, EW hardened
antennas
Tactical C2
03

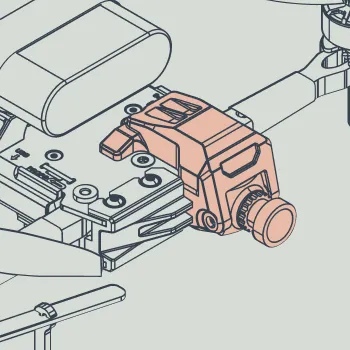

sensors
fpv camera
2,300 TVL,
150° FOV
thermal camera
640 x 480,
78° FOV
eo/ir illuminator
1,000 Lumens
1,000 MW/SR
down camera
1,200 TVL,
150° FOV
04
payload
mounting
30 × 30 MM M3 grid
or optional
Picatinny rail
connector
5V, 12V, PWM
mass limit
1.5 lbs (680 G)
top speed
74 mph / 120 kph (NO PAYLOAD)
70 mph / 113 kph (MAX payload)
Flight Range
13 KM (NO PAYLOAD)
6 KM (MAX payload)
flight time
20 MIN (NO PAYLOAD)
9 MIN (MAX payload)
launch time
<3 min
Payload Compatibility
001962-001

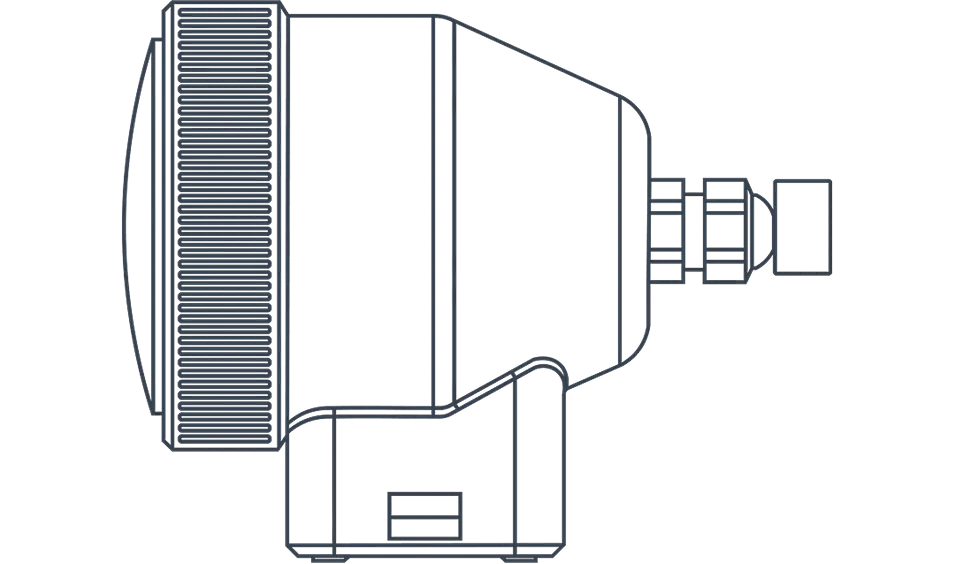

terminus-lv training warhead
A mass-representative payload that enables realistic, repeatable FPV training without live warheads or risking drone platforms.
Realistic mass and handling simulation
Dual training configurations
Safe, repeatable training environment
Progressive skill development
inert led training detonator
Simulates M6 detonator handling and priming, with a bright red LED for clear visual confirmation.
pyro-det training insert
Simulates detonation with a bright flash, smoke, and audible report, providing realistic visual and acoustic feedback.
001841-001

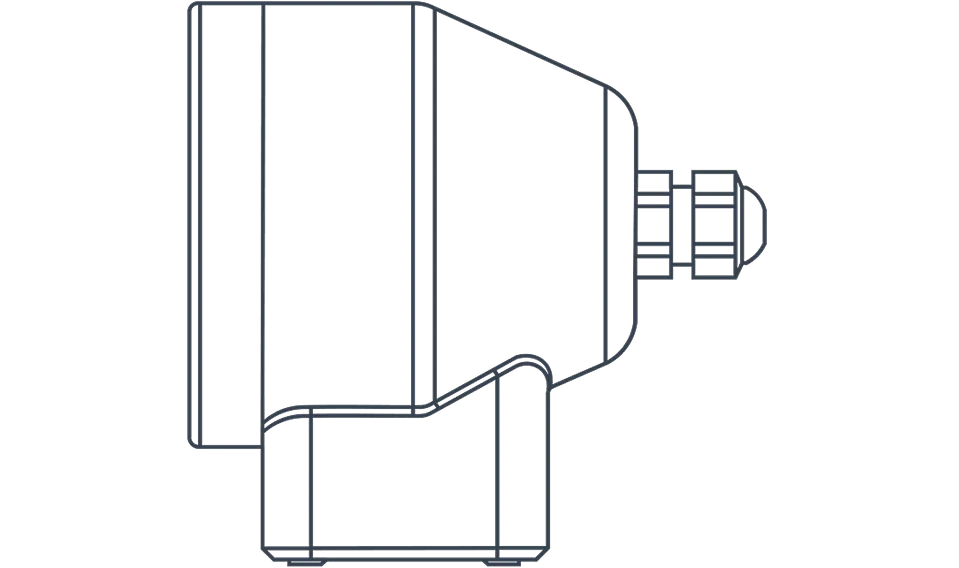

terminus anti-personnel fragmentation warhead
A high-density fragmentation casing engineered to deliver broad, uniform coverage and optimized fragment saturation across the target area.
High density fragment payload
Optimized forward fragmentation
Wide area coverage
Saturation-focused performance
