Crossbow

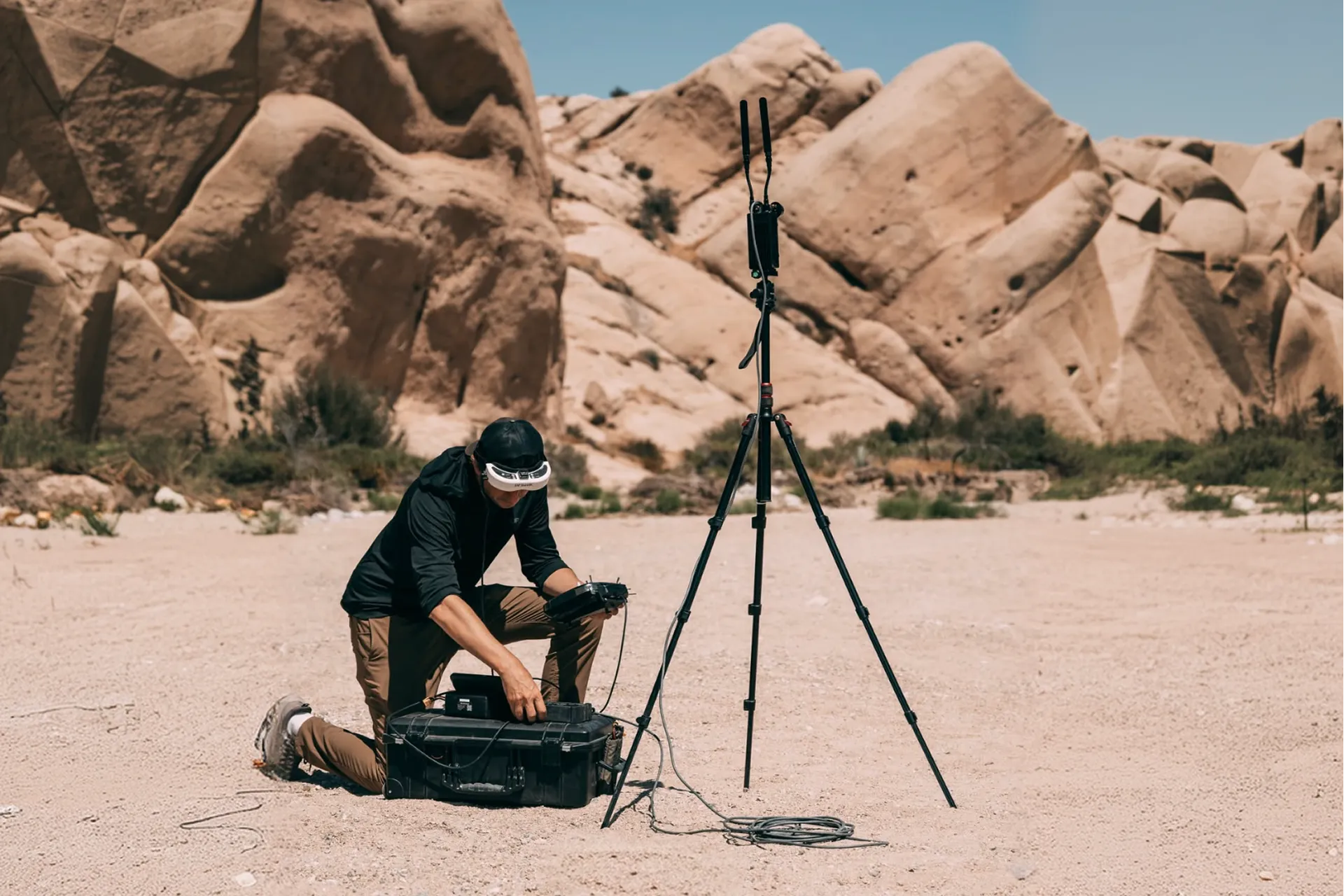

Built for demanding environments, Crossbow maintains stable connectivity through dual-band control links and long-range analog video, with soldier-borne operation from a plate carrier or displaced operation from a tripod.
Key features
A single-operator ground control station built to keep the link up when the environment works against it.
Compact form factor for maximum mobility
Omni-directional C2 antennas
Push-pull wire harnesses for rapid set up
Improved video performance and beam width
Ruggedized and weather-resistant enclosures
01
crossbow
maximum range
25 KM
battery
6S1P 5 AH
transmit time
5 HR
02
control link
frequency
High power adjustable analog link
gain
1 DBI
beamwidth
−3 DB point ± 45°
polarization
Linear (vertical)
03
video link
frequency
High power adjustable analog link
gain
7.8 DBIC
beamwidth
72°
−3 dB point, ± 36°
rolloff
−3 dB ± 10°
polarization
Right hand circular (RHCP)
Configurations

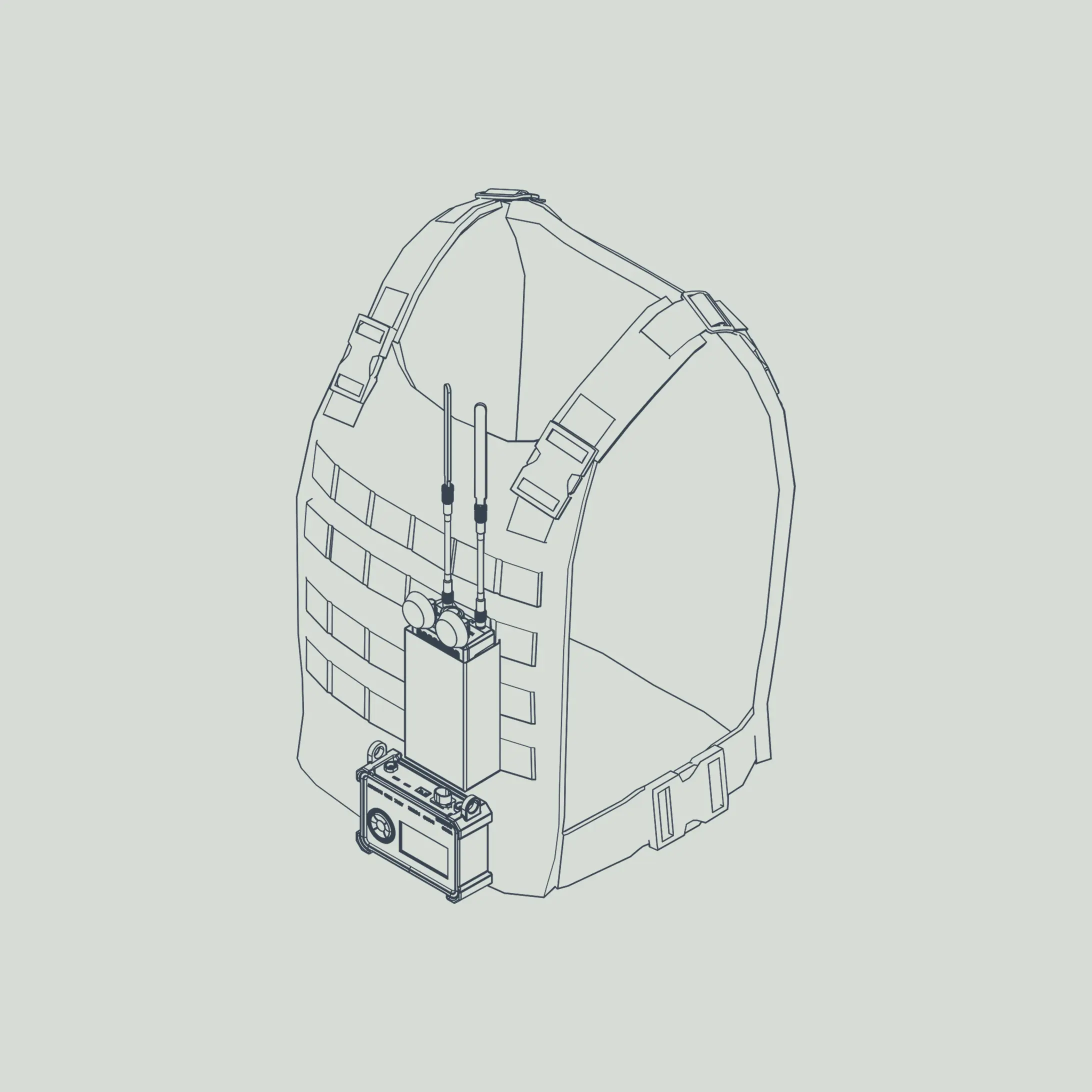

soldier-borne configuration

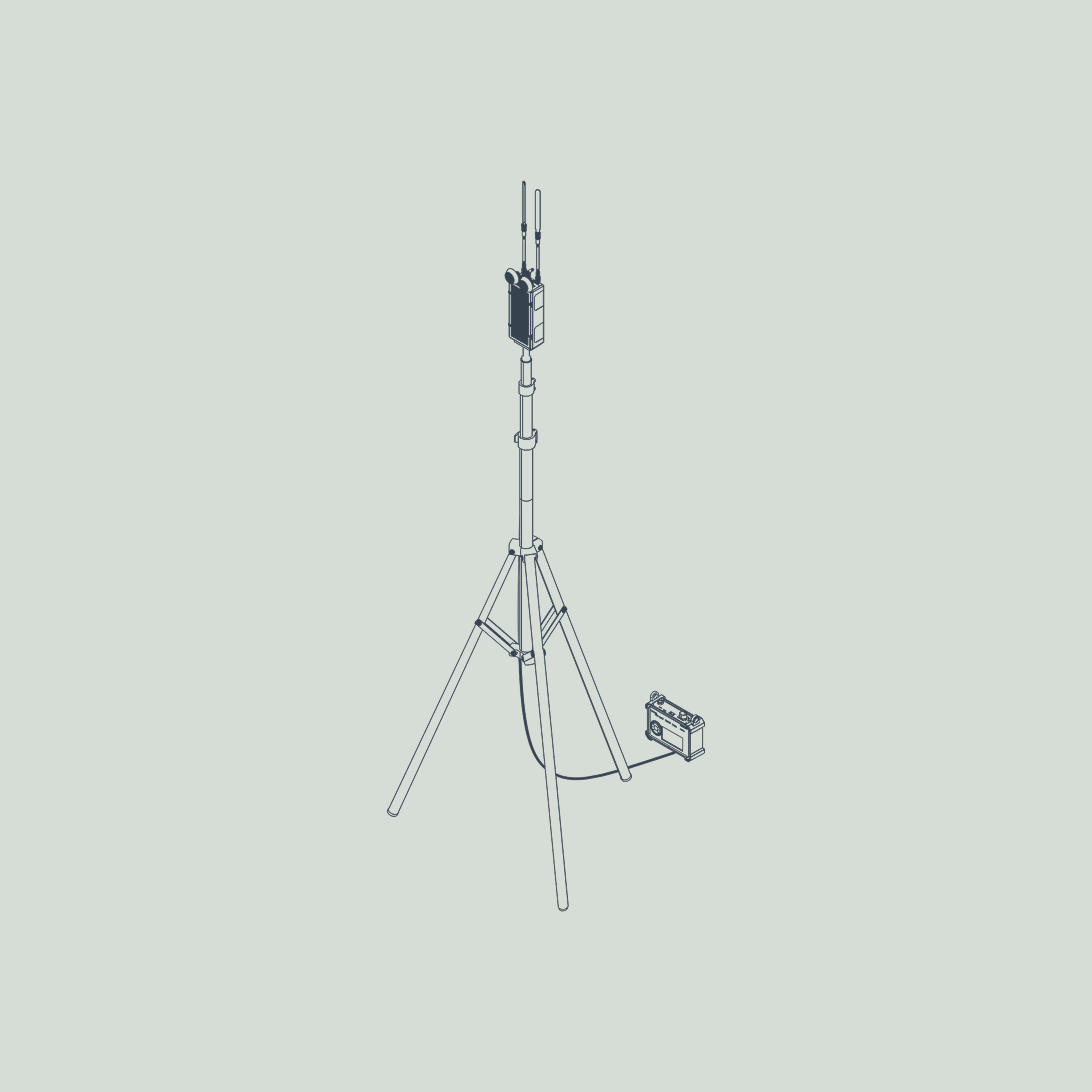

displaced configuration
mast cable lengths
1 M, 10 M, 30 M, 100 M
mast height
62” (185 CM)
Optional add-ons and accessories
Every crossbow shipped is fully operational out of the box. These extend displacement range, swap the control surface, or keep a second team running.
Crossbow [B2] 10 M Displacement Cable
Crossbow [B2] 30 M Displacement Cable
Crossbow [B2] 100 M Displacement Cable
Standard Folding Tripod (1.58 M)
Battery Charging Kit
Hand Tool Kit
Radio Pouch
