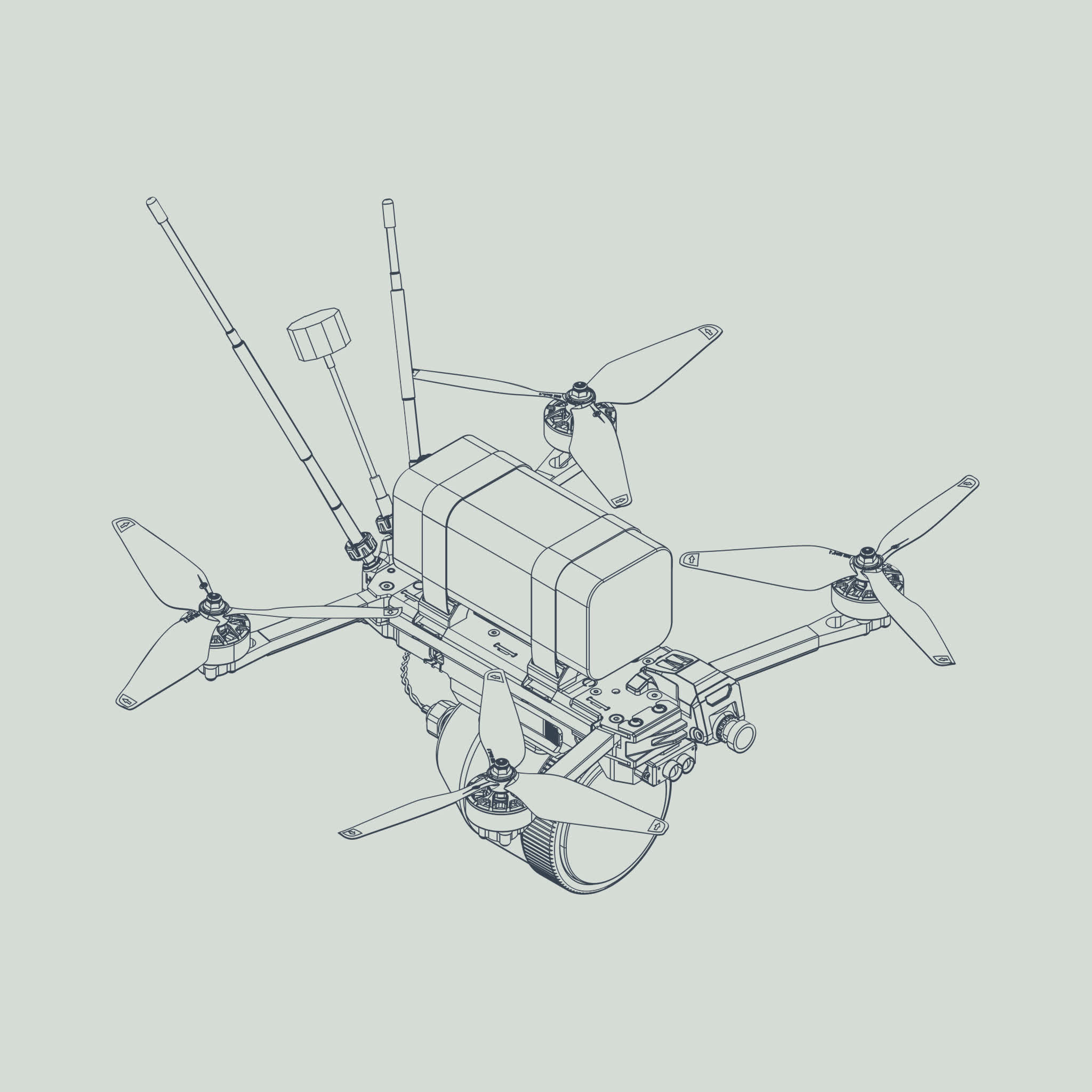

archer 8” Strike
Key features
APEX payload adapter enabling warheads, repeaters, fiber, and direction finders
Swappable front sensor
Integrated landing leg mounts
Ruggedized camera mount
Frequency tuned, user swappable antennas
High performance 6S 15 Ah battery
01
archer
length
17.2 IN
width
19.2 IN
weight (airframe)
5.16 LB (2,340 G)
02
data link
video
High power adjustable analog link
control
Dual band, EW hardened
antennas
Frequency tuned
User swappable
03
sensors
fpv camera
1200 TVL
150° FOV
thermal camera
640 × 480
78° FOV
eo/ir illuminator
1,000 Lumens
1,000 MW/SR
down camera
1,200 TVL
150° FOV
04
payload
mounting
30 × 30 MM M3 grid
or optional
Picatinny rail
connector
5V, 12V, PWM
mass limit
5.1 LB (2,310 G)
top speed
80 mph / 129 KPH (NO PAYLOAD)
72 mph / 116 KPH (MAX payload)
Flight Range
36.3 km (NO PAYLOAD)
16 km (MAX payload)
flight time
39 min (no payload)
13 min (max payload)
launch time
<3 min
Payload Compatibility
001962-001

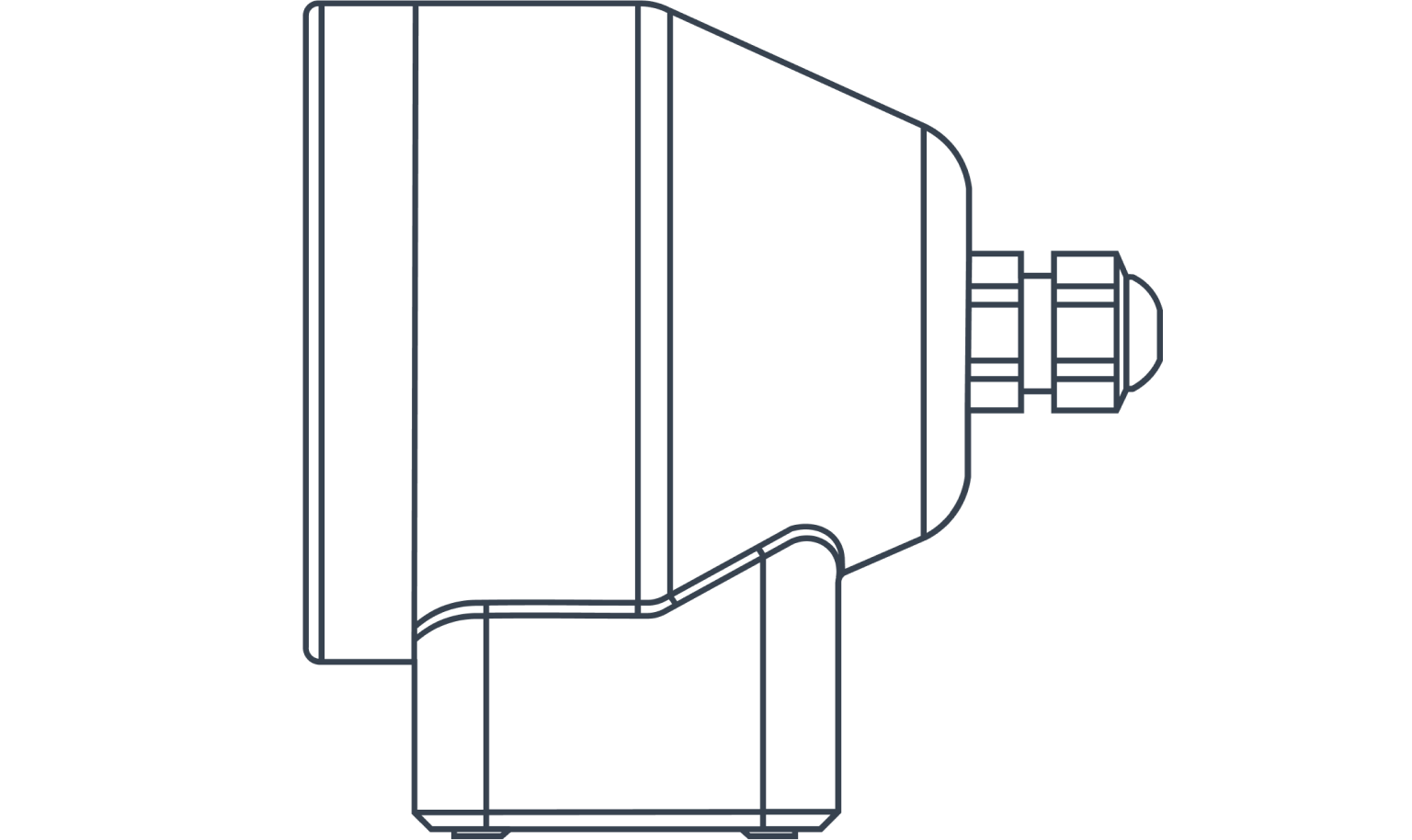

terminus-lv training warhead
A mass-representative payload that enables realistic, repeatable FPV training without live warheads or risking drone platforms.
Realistic mass and handling simulation
Dual training configurations
Safe, repeatable training environment
Progressive skill development
inert led training detonator
Simulates M6 detonator handling and priming, with a bright red LED for clear visual confirmation.
pyro-det training insert
Simulates detonation with a bright flash, smoke, and audible report, providing realistic visual and acoustic feedback.
001841-001
terminus anti-personnel fragmentation warhead
A high-density fragmentation casing engineered to deliver broad, uniform coverage and optimized fragment saturation across the target area.
High density fragment payload
Optimized forward fragmentation
Wide area coverage
Saturation-focused performance
001956-001

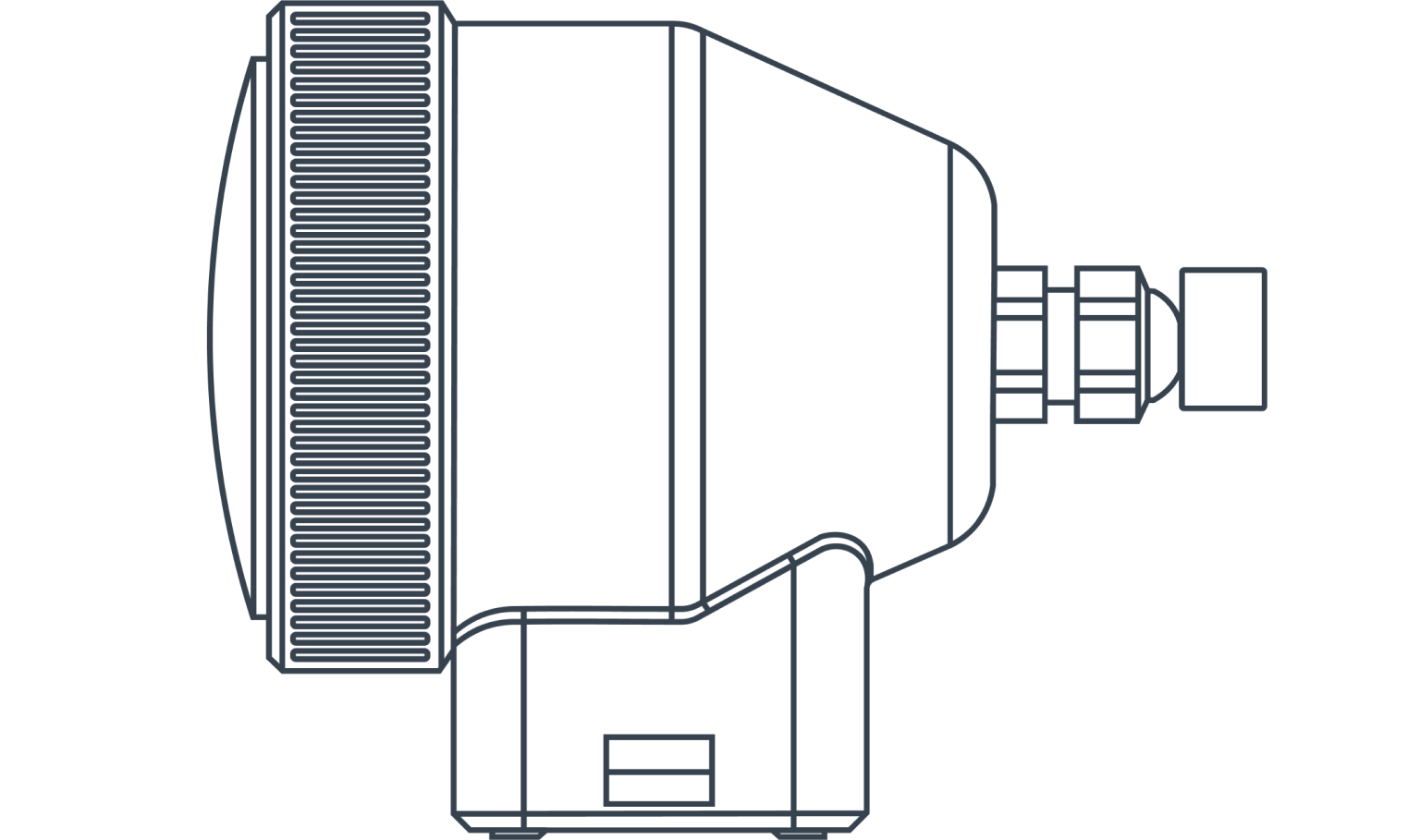

anti-materiel frag casing
A tungsten fragmentation casing designed for greater penetration against light structures, equipment, and vehicles.
Tungsten fragment payload
Controlled fragment projection
Enhanced penetration per fragment
001957-001

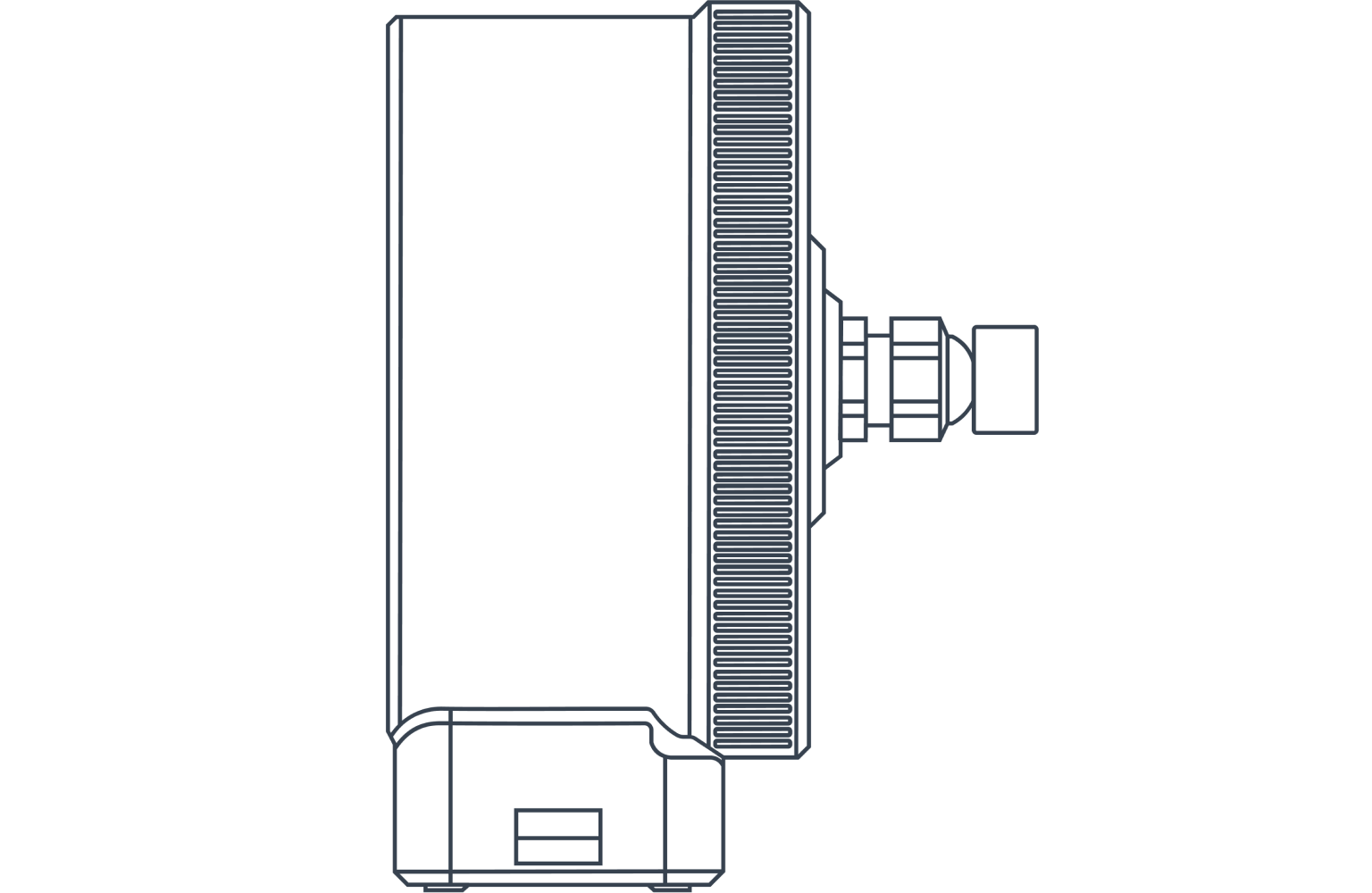

anti-armor efp casing
A copper-lined EFP warhead engineered for reliable penetration against armored and hardened targets, with proven performance exceeding 100 mm RHA.
High-performance armor penetration
FPV platform integration
Optimized EFP formation
Durable, mission-reliable construction
